Ominaisuudet

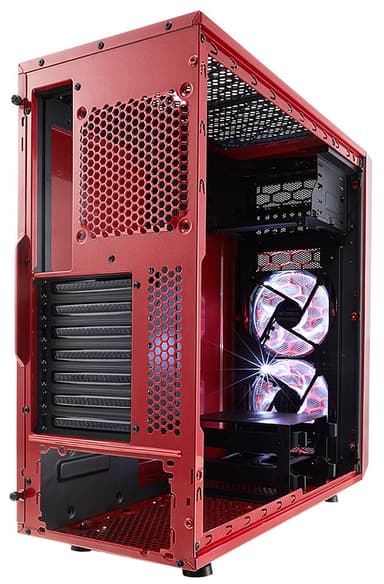

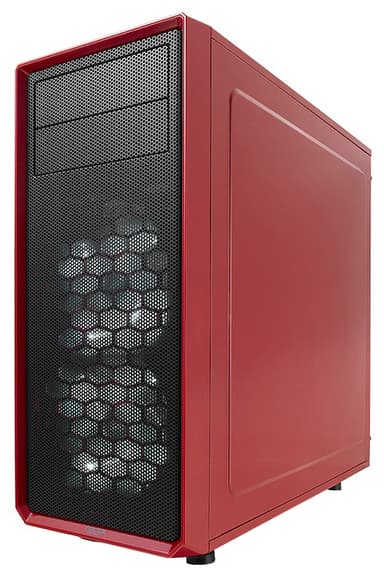

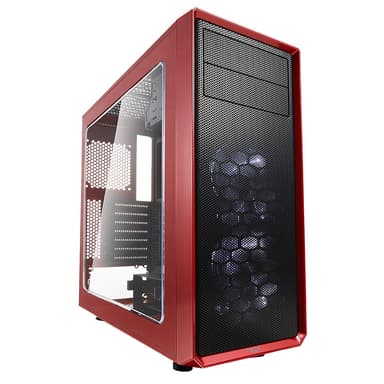

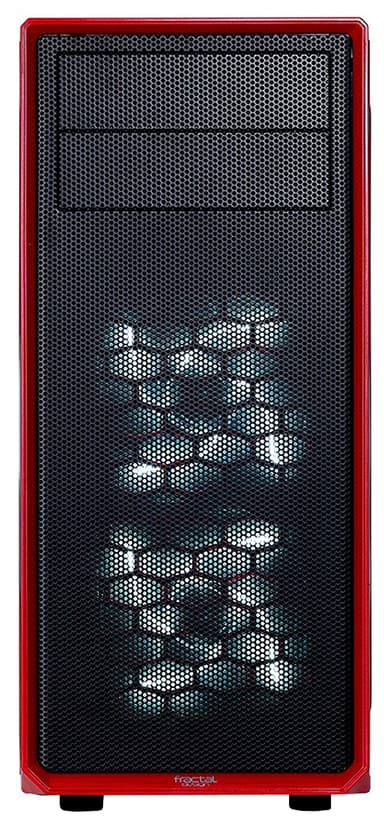

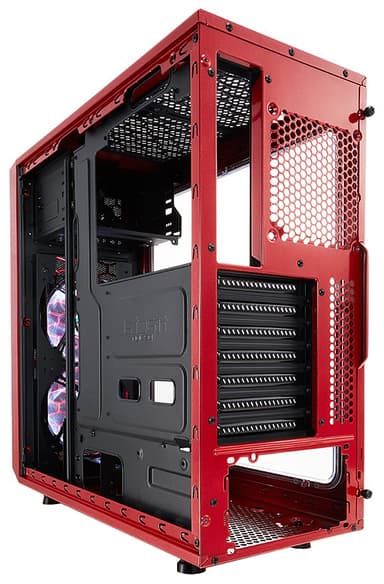

Fractal Design Focus G ATX PC case lets you create a powerful gaming PC with clean layout and modern design. The case lets you install even large GPUs and extensive cooling solutions with tall cooler or radiator assembly. Fully filtered air intakes ensure the inside stays dust-free. The large side window allows you to display the interior of the PC proudly. There are two Silent Series LL 120 mm fans with white LED lighting preinstalled in the case.
Top panel: The top panel has one fast USB 3.0 port, one USB 2.0 port and separate 3.5 mm headset and microphone mini-jack ports.
Features:
- Supports ATX format PSU (max. 230 mm long)
- Supports ATX, Micro ATX and Mini-ITX format motherboards
- 2x drive bays for 3.5"/2.5" drive units
- 1x drive bay for 2.5" drive unit
- 2x 5.25" optical drive bays
- 7 standard expansion card slots
- 2x 120 mm/140 mm front fan positions (2x 120 mm Silent Series fans included)
- 1x 120 mm rear fan position
- 2x 120 mm/140 mm top fan position
- 1x 120 mm bottom fan position
- Dust filters on bottom, top and PSU air intakes
- Max. radiator size: Up to 280 mm (front), up to 240 mm (top), up to 120 mm (rear)
- Max. CPU cooler height: 165 mm
- Max. GPU card length: 380 mm
- Cable routing space: 18-25 mm
Top panel: The top panel has one fast USB 3.0 port, one USB 2.0 port and separate 3.5 mm headset and microphone mini-jack ports.
Features:
- Supports ATX format PSU (max. 230 mm long)
- Supports ATX, Micro ATX and Mini-ITX format motherboards
- 2x drive bays for 3.5"/2.5" drive units
- 1x drive bay for 2.5" drive unit
- 2x 5.25" optical drive bays
- 7 standard expansion card slots
- 2x 120 mm/140 mm front fan positions (2x 120 mm Silent Series fans included)
- 1x 120 mm rear fan position
- 2x 120 mm/140 mm top fan position
- 1x 120 mm bottom fan position
- Dust filters on bottom, top and PSU air intakes
- Max. radiator size: Up to 280 mm (front), up to 240 mm (top), up to 120 mm (rear)
- Max. CPU cooler height: 165 mm
- Max. GPU card length: 380 mm
- Cable routing space: 18-25 mm
Tekniset tiedot
Mitat ja paino
Korkeus (cm) 44.4 Leveys (cm) 20.5 Syvyys (cm) 46.4 Paino (kg) 4.5 Korkeus (sis. pakkaus) 53,8 cm Leveys (sis. pakkaus) 27,2 cm Syvyys (sis. pakkaus) 49,4 cm Paino sis. pakkaus 6,23 kg Ominaisuudet
Muotoilu ATX Normaali Suositeltu emolevyn koko ATX Sisäinen 3,5" paikka 2 Sisäinen 2,5" paikka 1 Sis. tuulettimet Kyllä Näytönohjaimen enimmäispituus (mm) 380 Prosessorin jäähdyttimen enimmäiskorkeus (mm) 165 Tuotetiedot
Tyyppi Computer case/chassis (Desktop PC) Malli Fractal Design Focus G FD-CA-FOCUS-RD-W Muotoilu ATX Normaali Tuotesarja Focus EAN-koodi 7350041085188 Valmistajan tuotenumero FD-CA-FOCUS-RD-W Emolevy
Suositeltu emolevyn koko ATX Laajennusliitännät
Sisäinen 3,5" paikka 2 Sisäinen 2,5" paikka 1 Viilennys
Tuulettimien lukumäärä 2 Tuulettimen korkeus (mm) 25 Sis. tuulettimet Kyllä Grafiikka
Näytönohjaimen enimmäispituus (mm) 380 Prosessori
Prosessorin jäähdyttimen enimmäiskorkeus (mm) 165 Muotoilu ja sijoitus
Väri Musta , Punainen Ulkoiset liitännät
Liitäntä USB 3.0 , 3.5 mm mini-jack , USB 2.0
Ympäristöparametrit

Miksi julkaisemme ympäristöparametreja?
Tuomme esille tuotteiden valmistukseen liittyvät ympäristö- ja ilmastovaikutukset. Tutustu ympäristöparametreihin.
Valmistajan EcoVadis-luokitus | Ei arvosanaa |
Kolmannen osapuolen ympäristöhyväksyntä | Ei hyväksyntää |
Energiamerkintä | Ei luokitusta |
Valmistusmaa | Kiina |
