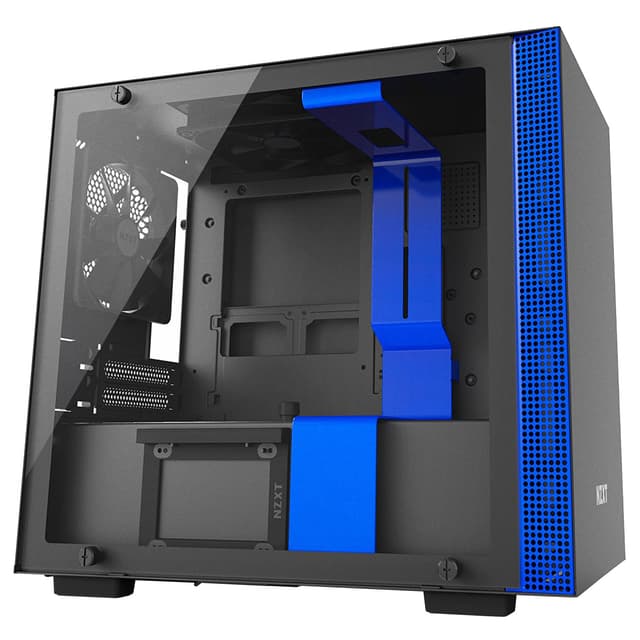

Design and build a compact, yet powerful gaming PC that can fulfill all your needs. NZXT H200i Mini-ITX PC case takes less space than full-size ATX boxes, but can still fit a high-end graphics card, sophisticated air and liquid cooling and RGB LED lighting. The tempered glass side window lets you showcase the inside of the PC. The all-steel construction is robust and incorporates innovative cable management system for clean interior layout and smooth airflow. There are two NZXT Aer F fans and one RGB LED strip included with the case.
CAM Smart controller: The included CAM Smart device lets you manage 3 separate fan channels with up to 10 W output per channel. There is also one RGB LED port that supports up to 4 NZXT Hue+ RGB LED strips or up to 5 Aer RGB fans.
Top panel: The top panel has two fast USB 3.0 ports and separate 3.5 mm headset and microphone mini-jack ports.
Features:
- Supports ATX format PSU (max. 311 mm length)
- Supports Mini-ITX format motherboards
- 1x drive bay for 3.5" drive unit
- 3+1x drive bays for 2.5" drive units (fourth bay requires removal of fan)
- 2 standard expansion card slots
- 2x 120/140 mm front fan positions
- 1x 120 mm rear fan position (1x NZXT Aer F 120 mm fan included)
- 1x 120 mm top fan position (1x NZXT Aer F 120 mm fan included)
- Dust filters on front and PSU air intakes
- Max. radiator size: 2x 120 mm (front, push-pull config)
- Max. CPU cooler height: 165 mm
- Max. GPU card length: 325 mm
- Cable routing space: 16.3 mm
CAM Smart controller: The included CAM Smart device lets you manage 3 separate fan channels with up to 10 W output per channel. There is also one RGB LED port that supports up to 4 NZXT Hue+ RGB LED strips or up to 5 Aer RGB fans.
Top panel: The top panel has two fast USB 3.0 ports and separate 3.5 mm headset and microphone mini-jack ports.
Features:
- Supports ATX format PSU (max. 311 mm length)
- Supports Mini-ITX format motherboards
- 1x drive bay for 3.5" drive unit
- 3+1x drive bays for 2.5" drive units (fourth bay requires removal of fan)
- 2 standard expansion card slots
- 2x 120/140 mm front fan positions
- 1x 120 mm rear fan position (1x NZXT Aer F 120 mm fan included)
- 1x 120 mm top fan position (1x NZXT Aer F 120 mm fan included)
- Dust filters on front and PSU air intakes
- Max. radiator size: 2x 120 mm (front, push-pull config)
- Max. CPU cooler height: 165 mm
- Max. GPU card length: 325 mm
- Cable routing space: 16.3 mm
Tekniset tiedot
Mitat ja paino
Korkeus (cm) 34.9 Leveys (cm) 21 Syvyys (cm) 37.2 Paino (kg) 6 Korkeus (sis. pakkaus) 45,0 cm Leveys (sis. pakkaus) 28,0 cm Syvyys (sis. pakkaus) 41,4 cm Paino sis. pakkaus 7,298 kg Ominaisuudet
Muotoilu Mini-ATX Suositeltu emolevyn koko Mini-ITX Sisäinen 3,5" paikka 1 Sisäinen 2,5" paikka 4 Sis. tuulettimet Kyllä Näytönohjaimen enimmäispituus (mm) 325 Prosessorin jäähdyttimen enimmäiskorkeus (mm) 165 Tuotetiedot
Tyyppi Computer case/chassis (Desktop PC) Malli NZXT H200i CA-H200W-BL Muotoilu Mini-ATX Tuotesarja H-Series Optimoitu pelaamiseen Kyllä EAN-koodi 5060301693979 Valmistajan tuotenumero NZXTH200WBL Emolevy
Suositeltu emolevyn koko Mini-ITX Laajennusliitännät
Sisäinen 3,5" paikka 1 Sisäinen 2,5" paikka 4 Viilennys
Tuulettimien lukumäärä 2 Tuulettimen korkeus (mm) 25 Sis. tuulettimet Kyllä Grafiikka
Näytönohjaimen enimmäispituus (mm) 325 Prosessori
Prosessorin jäähdyttimen enimmäiskorkeus (mm) 165 Muotoilu ja sijoitus
Väri Musta , Sininen Ulkoiset liitännät
Liitäntä 2x USB 3.0, 2x 3.5 mm mini-jack Myyntipakkauksen sisältö
Paketin mukana 2x NZXT Aer F120, 1x RGB LED Strip
Ympäristöparametrit

Miksi julkaisemme ympäristöparametreja?
Tuomme esille tuotteiden valmistukseen liittyvät ympäristö- ja ilmastovaikutukset. Tutustu ympäristöparametreihin.
Valmistajan EcoVadis-luokitus | Ei arvosanaa |
Kolmannen osapuolen ympäristöhyväksyntä | Ei hyväksyntää |
Energiamerkintä | Ei luokitusta |
Valmistusmaa | Kiina |
