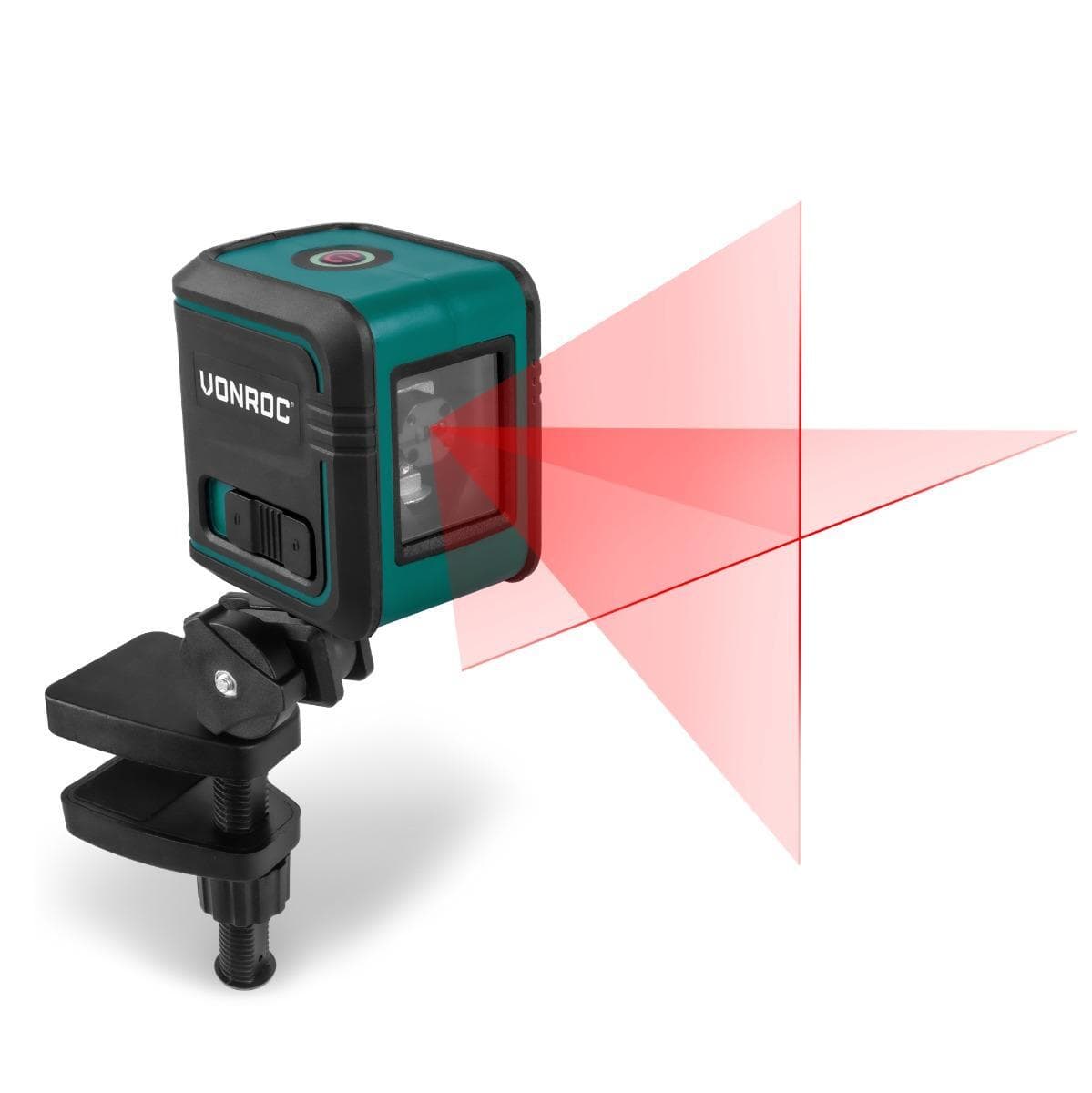

Cross line laser - Red – Self levelling - 10 meter range

From now on you will hang all kinds of objects perfectly straight with this VONROC cross line laser. This cross laser is intended for determing and checking well- visible horizontal and vertical lines onto the wall and is therefore designed for aligning objects, accurately, precisely and flawlessly. The line laser has a working range of no less than 10 meters.

• Leveling paintings, shelves and other objects


• Drilling several holes horizontally side by side


• Perpendicular alignment of, for example, battens, tiles and wallpaper


• Suspending banisters using the manual diagonal function and aligning diagonal surfaces for painting


• Installing kitchen and bathroom furniture

This device ensures that the displayed laser line is always exactly horizontal or vertical, with an accuracy of +/- 0.8 mm per meter. In addition, this cross line laser has a self-leveling range of ± 5° with automatic status display. This means that when the device is not in level (and therefore outside the self-leveling range), a red light will be illuminated and when the laser is in level, a green light will be illuminated.

• Good quality laser diode from the brand Arima® with a long lifetime of ±8000 hours.


• Self-leveling cross line laser red with an accuracy of +/- 0.8 mm per meter.


• Self-leveling range of ± 5° with automatic deviation indication.

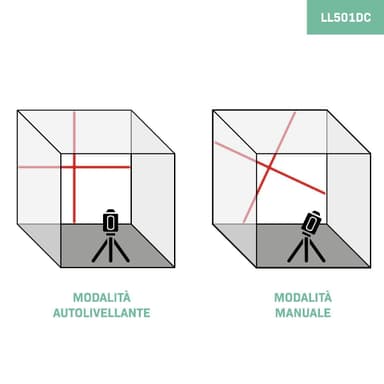

• The laser can be manually (pendulum fixation) set to the angle you need, allowing you to display a diagonal line, for example.


• Supplied with 2 AAA batteries for approximately 14 hours of working hours.


• For a highly visible horizontal level line and vertical orthogonal line.

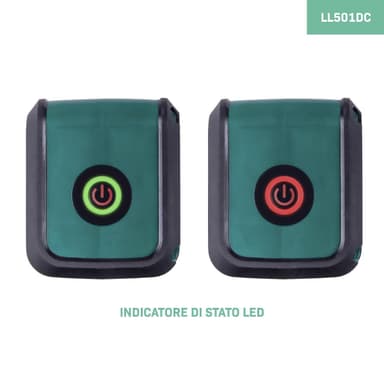

• LED status display: when the device is not placed perfectly level (and therefore outside the self-leveling range) it will show a red light and a green light when it is placed properly.


• Quick and easy to use thanks to just two control buttons.


• Easy to clamp and align because of the universal clamp.


• With the supplied clamp the laser is really easy to attach to, for example, a household ladder, chair, table, table top or beam.


• Compact design.


• Easy to use.

• Number of laser lines: 2 (1x vertical/1x horizontal)


• Direction of beams: vertical/level


• Laser line color: red


• Laser wavelength: 620~690 nm


• Laser diode brand: Arima®


• Laser diode life span: ±8000 hours


• Working range: ±10m


• Accuracy: ± 0.8 mm/m


• Self-leveling range: ± 5°


• Leveling time: 4s


• Transport lock / manual mode: yes


• Protection: IP 20


• Tripod connection: ¼""


• Universal clamp: yes


• Maximum clamp thickness: 60mm


• Operating time max: 14 hours


• Battery: 2x 1.5V LR03 (AAA) Alkaline (included)


• Dimensions: 65x55x70mm


• Weight (excl. Batteries): 190 g

The LL501DC cross line laser red comes in an environmentally friendly brown box without full colour print. In the package you will also find a VONROC Member card and a reusable toolbag.

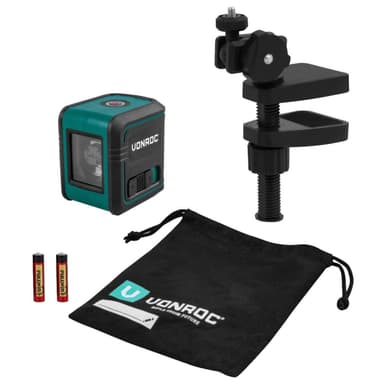

Includes:

• 1x VONROC cross line laser red - LL501DC


• Universal clamp - ¼"" connection


• 2x 1.5V LR03 (AAA) Alkaline batteries


• 1x VONROC Toolbag


• 1x VONROC Membercard
