Ominaisuudet

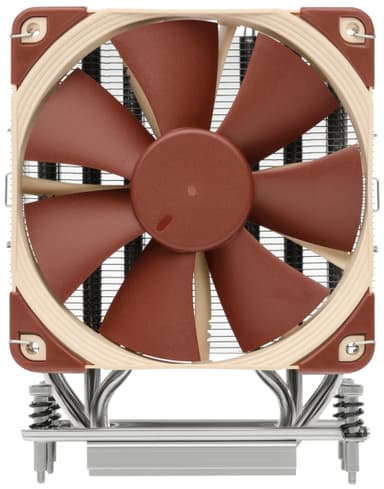

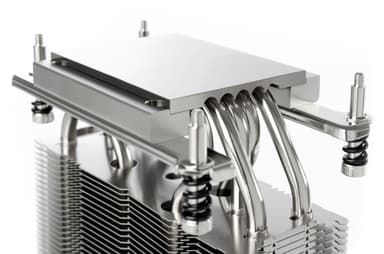

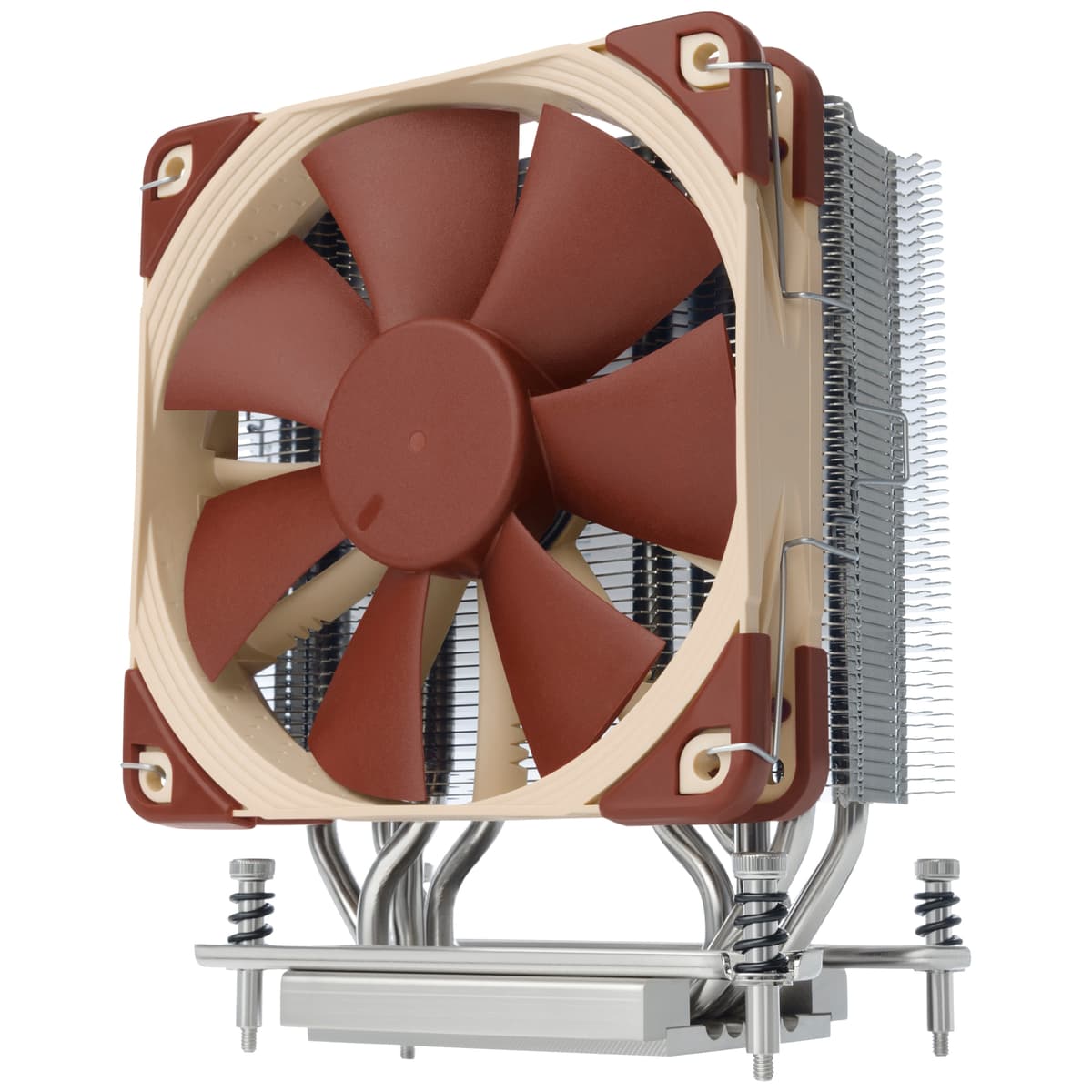

Slim Noctua NH-U12S TR4-SP3 CPU cooler is ideal for efficient cooling of your AMD Threadripper or Epyc processor without encroaching on RAM modules. The cooler radiator is just 45 mm slim but features copper base with larger contact area for the Epyc processor modules and heatpipes with dense aluminium fin block. The 120 mm PWM fan has FocusedFlow frame to direct more air over the fins and comes with optional low-noise adapter to cut top speed and noise level.
The cooler is covered by extended 6-year Noctua warranty for your peace of mind.
Features:
- Full nickel plating
- NF-F12 FocusedFlow 120 mm PWM fan runs at 300-1500 rpm (1200 rpm with L.N.A.)
- Max. 22.4 dBa noise level (18.6 dBa with L.N.A.)
- 4-pin PWM connector
- Max. 93.4 m3/h airflow (74.3 m3/h with L.N.A.)
- Optional position for second NF-F12 fan in the rear
Compatibility: Only includes mounting bracket for AMD TR4-SP3 socket (Threadripper/Epyc processor series). Not compatible with other mounting kits due to different base.
Included in the box:
- NH-U12S TR4-SP3 cooler
- NF-F12 FocusedFlow 120 mm PWM fan
- Low-noise adapter
- NT-H1 thermal paste
- SecuFirm2 TR4-SP3 mounting kit
- Fan clips and anti-vibration clips for second NF-F12 fan
- Noctua metal badge for PC case
The cooler is covered by extended 6-year Noctua warranty for your peace of mind.
Features:
- Full nickel plating
- NF-F12 FocusedFlow 120 mm PWM fan runs at 300-1500 rpm (1200 rpm with L.N.A.)
- Max. 22.4 dBa noise level (18.6 dBa with L.N.A.)
- 4-pin PWM connector
- Max. 93.4 m3/h airflow (74.3 m3/h with L.N.A.)
- Optional position for second NF-F12 fan in the rear
Compatibility: Only includes mounting bracket for AMD TR4-SP3 socket (Threadripper/Epyc processor series). Not compatible with other mounting kits due to different base.
Included in the box:
- NH-U12S TR4-SP3 cooler
- NF-F12 FocusedFlow 120 mm PWM fan
- Low-noise adapter
- NT-H1 thermal paste
- SecuFirm2 TR4-SP3 mounting kit
- Fan clips and anti-vibration clips for second NF-F12 fan
- Noctua metal badge for PC case
Tekniset tiedot
Mitat ja paino
Korkeus (cm) 15.8 Syvyys (cm) 7.1 Tuulettimen läpimitta (mm) 120 Tuulettimen korkeus (mm) 25 Jäähdyttimen mitat 158 x 125 x 45 Korkeus (sis. pakkaus) 21,4 cm Leveys (sis. pakkaus) 11,2 cm Syvyys (sis. pakkaus) 20,0 cm Paino sis. pakkaus 1,292 kg Ominaisuudet
Tuulettimen läpimitta (mm) 120 Jäähdyttimen mitat 158 x 125 x 45 Tuulettimien lukumäärä 1 Jäähdytyselementin/jäähdyttimen materiaali Kupari Yhteensopiva suoritinkanta AMD TR4-SP3 Kierrosnopeus (RPM) 300 - 1500 (PWM) Äänitaso dB (A) 18.6/22.4 Tuotetiedot
Tyyppi CPU air cooling (fan) Malli Noctua NH-U12S TR4-SP3 Tuotesarja NH EAN-koodi 9010018000115 Valmistajan tuotenumero NH-U12S TR4-SP3 Viilennys
Tuulettimien lukumäärä 1 Jäähdytyselementin/jäähdyttimen materiaali Kupari Yhteensopiva suoritinkanta AMD TR4-SP3 Tuulettimen laakerityyppi SSO2 Kierrosnopeus (RPM) 300 - 1500 (PWM) Ilmanvirtaus 74.3/93.4 m3/h Äänitaso dB (A) 18.6/22.4 Kapasiteetti, kulutus ja virta
Nimellisjännite (V) 12 V
Ympäristöparametrit

Miksi julkaisemme ympäristöparametreja?
Tuomme esille tuotteiden valmistukseen liittyvät ympäristö- ja ilmastovaikutukset. Tutustu ympäristöparametreihin.
Valmistajan EcoVadis-luokitus | Ei arvosanaa |
Kolmannen osapuolen ympäristöhyväksyntä | Ei hyväksyntää |
Energiamerkintä | Ei luokitusta |
Valmistusmaa | Kiina |
