Delock USB 3.2 Gen 1 Hub with 7 Ports + 1 Fast Charging Port + 1 USB-C
Tuotenumero: 481657
Ominaisuudet
DeLOCK USB 3.2 Gen 1 Hub with 7 Ports + 1 Fast Charging Port + 1 USB-C™ PD 3.0 Port with Switch and Illumination, grey

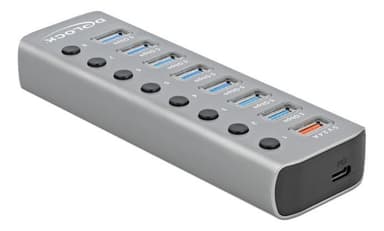

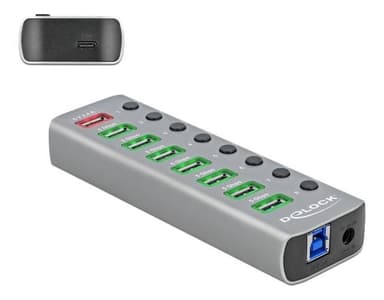

This solid USB hub by Delock with metal housing can be connected to a computer via the USB Type-A interface. It expands the computer by 7 USB Type-A ports. Connected devices such as smartphones can be charged or data can be transferred at 5 Gbps.
Additional fast charging port and USB-C™ PD 3.0 port
Another USB Type-A port offers the possibility to charge devices, such as smartphones with up to 2.4 A.
The USB Type-C™ PD port offers up to 12 V and 2.25 A output power, so laptops can also be charged.
LED illumination and switch
Each port can be turned on or off individually by using the switches. In addition, each USB Type-A port has a frame that lights up as soon as the port is activated.
Specification
• Connectors:
1 x SuperSpeed USB (USB 3.2 Gen 1) Type-B female >
7 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female
1 x USB Type-A charging port (max. 5 V / 2.4 A)
1 x USB Type-C™ female PD 3.0 (max. 12 V / 2.25 A)
1 x 12 V DC jack
• Chipset: Genesys Logic GL3510, GL888F, IP6528AC
• Data transfer rate up to:
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• LED illumination on the USB Type-A ports
• Robust metal housing
• Power supply: Self-powered
• Dimensions (LxWxH): ca. 144 x 46 x 21 mm
• Colour: grey
• Plug & Play
Power supply specification
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.3 A
• Output: 12 V / 3 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 10 mm
System requirements
• Chrome OS
• Linux Kernel 3.18 or above
• Mac OS 10.15.3 or above
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port

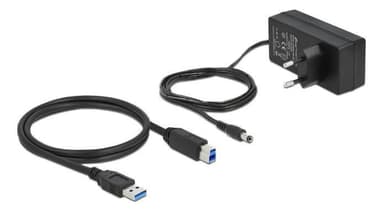

Package content
• Hub USB 3.2 Gen 1
• 1 x cable USB 3.2 Gen 1 Type-A male to USB 3.2 Gen 1 Type-B male, length ca. 80 cm
• External power supply
• User manual
Tekniset tiedot
Tuotetiedot
Tyyppi USB hubi EAN-koodi 4043619632640 Valmistajan tuotenumero 71183066
